IRwin™ INSPECTRA® MAX

Latest addition to the GAZOMAT™ INSPECTRA® product line, the INSPECTRA® MAX instrument builds upon newest  advances in the proven laser spectroscopy technology used by the well-known INSPECTRA® LASER. The INSPECTRA®  MAX offers measurement performances of the highest accuracy and reliability, while fully complying with latest IECEx  and ATEX standards for use in explosive atmospheres.  It is also in the field of interconnected mobility that the INSPECTRA® MAX stands out, with functions that make live  connected leak monitoring and data integrity a reality.

Enhanced TDLAS Laser Spectroscopy Technology

With the INSPECTRA® MAX, GAZOMAT brings the TDLAS technology to  the next level. The new optical unit developed:

 • Increases sensitivity to methane.

• Improves accuracy and speed of gas concentration analysis.

• Extends the product’s life with the same enhanced sensitivity and high  precision performances over the years.

Continuous Scaling for Optimised Measurements and Display  Easy-to-Use with Maximum Flexibility

• The INSPECTRA® MAX innovates with a continuous scale of gas  concentration analysis and display. Direct benefits are ultra-low  latency in the display and smooth measurements.

• The continuous scale also helps preserve:  o Response time quality  o Methane selectivity.

Zone 1, IECEx and ATEX Certification

Intrinsically safe, the INSPECTRA® MAX detector can be operated in Zone 1, IECEx and ATEX explosive atmospheres, both indoors and outdoors.  The instrument also complies with the latest optical radiation protection  directive (see technical specifications).

Easy-to-Use with Maximum Flexibility

• Ultra-short start-up time, less than 15s.

• Automatic self-test at start-up.

• Visual and audio indicators (battery charge level, pump status,  alarm on/off, risk of explosion, etc.) .

• Access to standard and advanced functions with the 5-key keypad.

• Operates with GAZOMAT battery pack in explosive atmospheres or with LR20 alkaline dry cells in non-explosive atmospheres exclusively .

• Easy-to-replace battery pack – no return to service center required.

• Modular telescopic carbon sampling probe. Connects easily to a  suction cup, a single-wheel probe or a gas-trap trolley.

 • Connects to the GAZOSURVEY™ mobile App (optional) via a  smartphone or tablet. Gas leak detection traceability is guaranteed.

Scope of Application

Suitable for any application requiring the measurement of methane or  biomethane concentrations:

• Detection and precise location of gas leaks, any field configuration:  bore holes, confined areas, etc.

• Survey of underground and aboveground pipelines .

• Monitoring of compression plants, gas storage plants, high pressure  lines, pressure reducing stations, etc.

• Surface emission monitoring of volcano sites, landfills, etc.

• Analysis in laboratories.

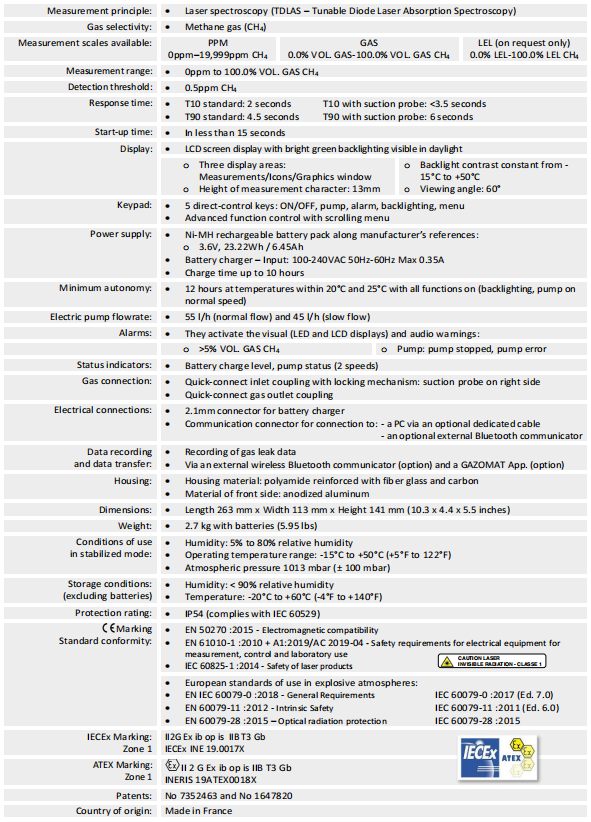

Technical Parameter
