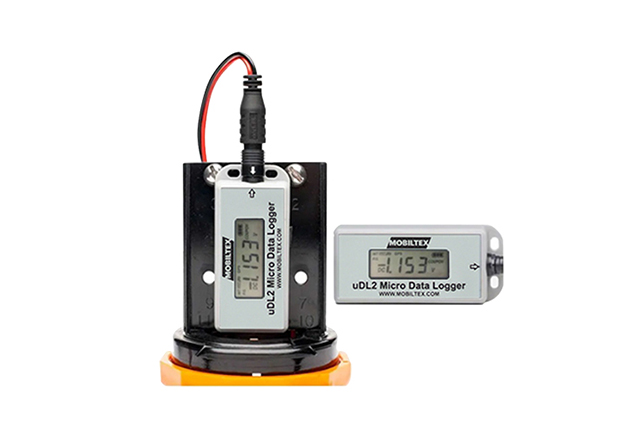

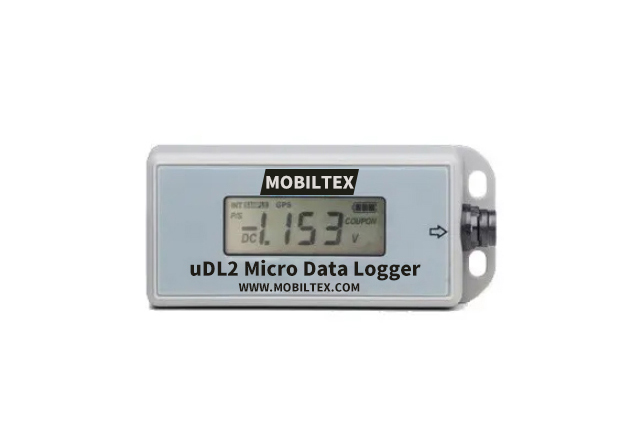

uDL2 Micro Data Logger

CATHODIC PROTECTION DATA LOGGER FOR CP COUPONS WITH GPS RECEIVER
Tiny, yet highly capable, the CorTalk uDL2 provides comprehensive data measurement and logging of coupon status in CP systems. The device provides reliable, accurate measurement of AC current density, coupon DC current, a range of potential measurements and more. The device’s rechargeable battery provides up to four months of service and up to 2,000,000 readings on a single charge.

Periodic field surveys of cathodic protection systems can’t identify frequent, short-term events that can seriously impact pipeline integrity. MOBILTEX data loggers solve this challenge with pocket-sized, highly accurate devices that are designed to be quickly installed inside rectifiers and test stations to measure and record critical performance parameters from the Cathodic Protection system.

Each device offers a wide range of configurable settings that includes sample rate, current measurement ranges, time, geo-location and more. A tough enclosure, combined with durable components provides reliable operation in the harshest of operating conditions, while a long-lasting rechargeable battery ensures months of operation.


CATHODIC PROTECTION DATA LOGGER FOR CP COUPONS WITH GPS RECEIVER

Tiny, yet highly capable, the CorTalk uDL2 provides comprehensive data measurement and logging of coupon status in CP systems. The device provides reliable, accurate measurement of AC current density, coupon DC current, a range of potential measurements and more. The device’s rechargeable battery provides up to four months of service and up to 2,000,000 readings on a single charge.

Periodic field surveys of cathodic protection systems can’t identify frequent, short-term events that can seriously impact pipeline integrity. MOBILTEX data loggers solve this challenge with pocket-sized, highly accurate devices that are designed to be quickly installed inside rectifiers and test stations to measure and record critical performance parameters from the Cathodic Protection system.

Each device offers a wide range of configurable settings that includes sample rate, current measurement ranges, time, geo-location and more. A tough enclosure, combined with durable components provides reliable operation in the harshest of operating conditions, while a long-lasting rechargeable battery ensures months of operation.



FEATURESBENEFITS

· Out of sight design.

· Maximum battery life.

· Instantly view current data.

· GPS accuracy.

· Multiple memory options.

· Easy to use.

· Engineered to withstand the toughest conditions.

BENEFITS

· Compact units fit inside most standard CP test stations.

· Internal rechargeable batteries provide up to six months of continuous operation.

· LCD display for local measurement monitoring.

· Internal GPS receiver provides an accurate time reference and site geo-location coordinates.

· Up to 2,000,000 readings and a DC voltage waveform capture mode which samples at rate of 10 times per second.

· Fast, simple device configuration, data retrieval and charging via USB.

· Lightning and surge protection, IP65 rated with broad operating temperature range ( -20°C to +60°C [ -4°F to +140°F ] ).


SPECIFICATIONS

ENVIRONMENTAL

· Operating Temperature:-20° to +60° C (-4° to +140° F) .

· Storage Temperature:-40° to +70° C (-40° to +158° F) .

· Maximum Altitude:5000 meters above sea level.

· Humidity:0 to 100% RH non-condensing .

PHYSICAL + POWER

· Weight:75 grams (2.7 oz) .

· Size:89mm x 40mm x 18mm (3.5” x 1.6” x 0.72”) .

· Power Source:Rechargeable Internal Li-Ion (Not user replaceable) .
