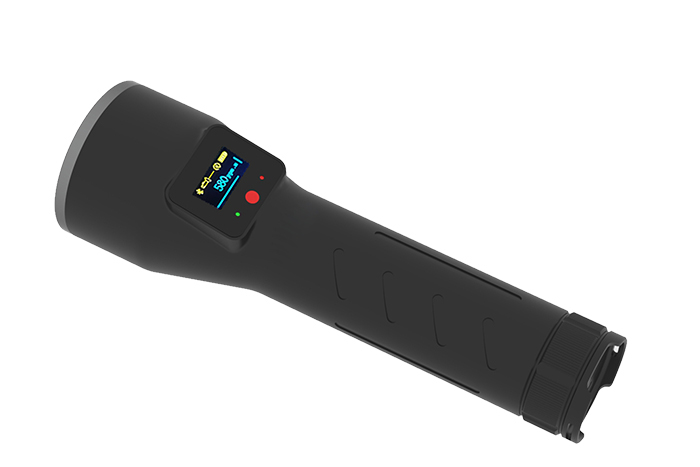

DM4 Laser Remote Methane Detector

The DM4 laser methane remote detector utilizes tunable semiconductor laser absorption spectroscopy technology to quickly and accurately detect gas leaks, specifically CH4, over long distances. This allows workers to detect leaks in difficult-to-reach or inaccessible areas from safe locations, such as busy roads, external risers, overhead pipes of high-rise buildings, long-distance transmission pipelines, and indoor detection of high-rise buildings. The use of laser methane remote detectors not only improves the efficiency and quality of inspections but also enables inspections in previously inaccessible areas. This technology helps to avoid and reduce the risks of casualties in accidents caused by pipeline leaks and explosions, making oil and gas operations safer.

The use of laser methane remote detectors not only improves the efficiency and quality of inspections but also enables inspections in previously inaccessible areas. This technology helps to avoid and reduce the risks of casualties in accidents caused by pipeline leaks and explosions, making oil and gas operations safer.

How it works

The instrument emits a precisely tuned laser beam. When the laser hits the surface that needs to be measured, it creates a diffuse reflection. The instrument then receives a portion of the diffusely reflected light. By analyzing the received signal, the average concentration of methane along the path taken by the laser can be determined.

Product Features

- Long-distance Detection: able to detect methane and methane-containing gas leaks at distances ranging from 30-100 meters.

- Fast Detection: detection time is only 0.1 seconds.

- High Accuracy: this specific laser detection method only reacts to methane gas and is not affected by environmental conditions.

- Easy to Use: automatically detects when turned on, requires no periodic calibration, and is virtually maintenance-free.

- Easy to Carry: the integrated design is lightweight and convenient to carry.

- Excellent Display: high-resolution, high-brightness screen, allowing users to see measurement indications even in brightly lit outdoor environments.

Technical Parameter

- Detection Gas：Methane CH4.

- Measurement Principle：Tunable Diode Laser Absorption Spectroscopy（TDLAS）.

- Detection Range：0～99999ppm·m.

- Resolution：5ppm·m.

- Measurement Precision：±10%FS.

- Response Speed：0.1s.

- Optional：30m/60m/100m.

- Operating Temperature：-40℃-60℃.

- Working Humidity：0-95%RH.

- Protection Level：IP68.

- Explosion-proof Sign：Ex ib IIC T4 Gb.
